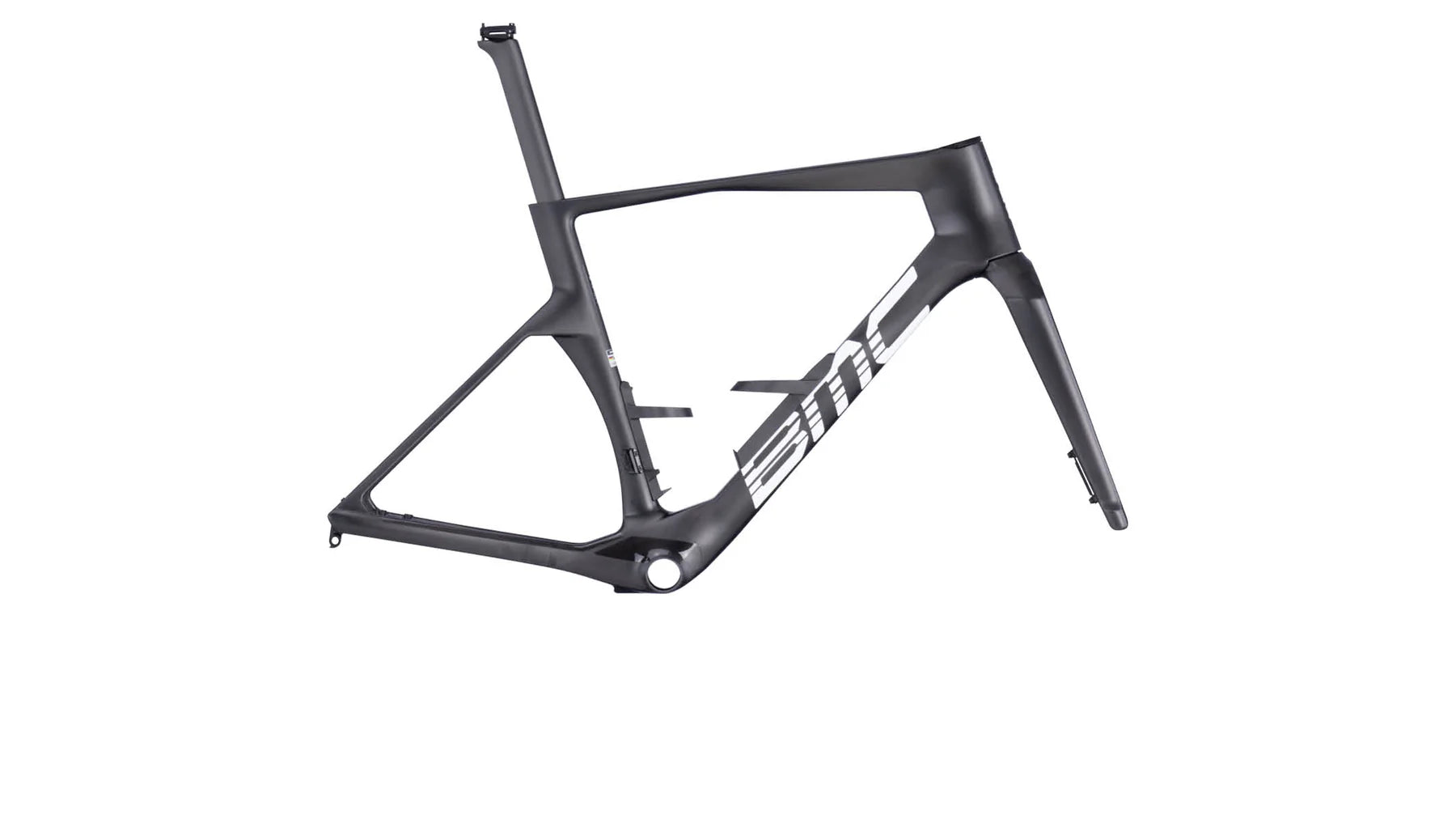

BMC Teammachine R 01 MOD Frameset CARBON BLACK / COOL WHITE

BMC Teammachine R 01 MOD Frameset CARBON BLACK / COOL WHITE

$8,200.00
/
Tax included. Shipping calculated at checkout.
Size

CALL US TO CHECK ON SIZE AVAILABILITY, LIMITED NUMBERS!

Teammachine R 01 Premium Carbon Module
ICS Carbon Aero Cockpit
Integrated Aerocore Bottle Cages
The all-new BMC Teammachine R was designed for a special breed of cyclist. Light enough to ascend the most demanding climbs and stiff enough to endure the most watt-crushing sprints, the Teammachine R is the ultimate race bike. The Teammachine R 01 MOD comes with BMC’s ICS Carbon Aero Cockpit and the integrated Aerocore bottle cages.



Innovation

Technical Overview


Full Specification

  • Frame

    Teammachine R 01 Premium Carbon with Aerocore Design | ICS Technology, Stealth Cable Routing | Integrated Aerocore Bottle Cages | Stealth Dropout Design | PF86 Bottom Bracket | Flat Mount Disc | 12x142mm Thru-Axle

  • Fork

    Teammachine R 01 Premium Carbon | ICS Technology | Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12x100mm Thru-Axle

  • Handlebar

    ICS Carbon Aero | One-Piece Full Carbon Cockpit

  • Seatpost

    Teammachine R 01 Premium Carbon Seatpostn10mm Offset

  • Tire Clearance

    30mm (Measured Width)

  • Extras

    Aerocore Bottle Cages

  • Weight Limit

    110 Kg

  • ASTM Classification

    Level 1



 Geometry

Size 47 51 54 56 58 61
Rider Height CM <166 166-174 172-180 178-186 184-192 >190
Stack MM 504 528 548 563 582 608
Reach MM (reach) 368 378 387 393 402 409
Seat Tube MM (st) 418 463 499 519 541 570
Top Tube MM (tt) 522 532 552 562 582 598
Head Tube MM (ht) 108 133 149 165 185 211
Seat Tube Angle (sa) 74 74 73.5 73.5 73 73
Head Angle (ha) 71.5 71.5 72.3 72.3 72.3 72.3
Rear Center MM (rc) 410 410 410 410 410 410
Front Center MM (fc) 568 586 589 599 614 630
Wheelbase MM (wb) 968 986 989 999 1015 1030
BB Drop MM (drop) 69 69 69 69 69 69
Fork Length MM (fl) 367 367 367 367 367 367
Fork Rake MM (fr) 48 48 43 43 43 43
Trail MM (trail) 63 63 63 63 63 63
Crank Length MM 170 170 172.5 172.5 175 175
Stem Length MM 90 100 100 110 110 120
Stem Angle -15 -15 -15 -15 -15 -15
Bar Width MM 360/420 360/420 360/420 360/420 360/420 360/420
Bar Drop MM 135 135 135 135 135 135
Bar Reach MM 72.5 72.5 72.5 72.5 72.5 72.5
Post Offset MM 10 10 10 10 10 10
Seatpost Length MM 335 335 385 385 405 405
