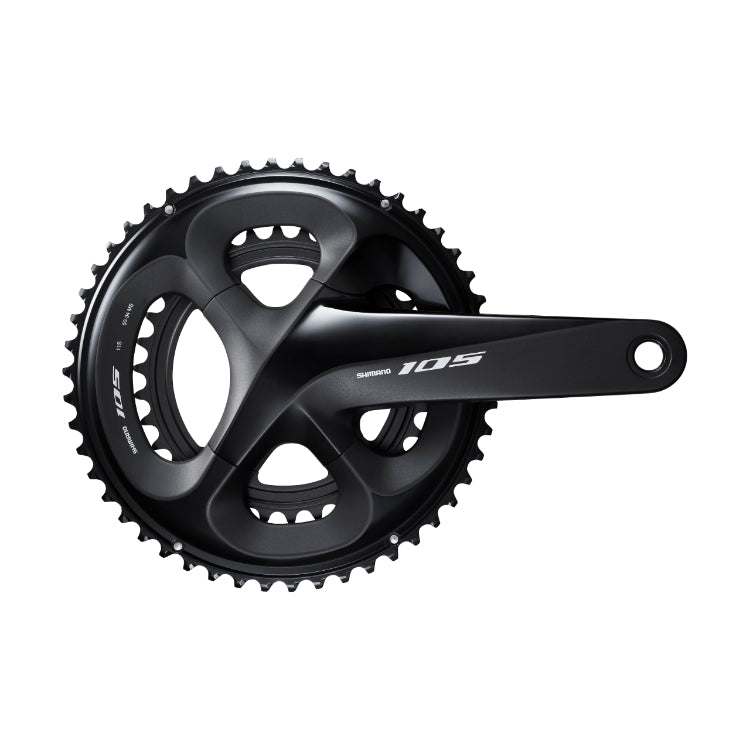

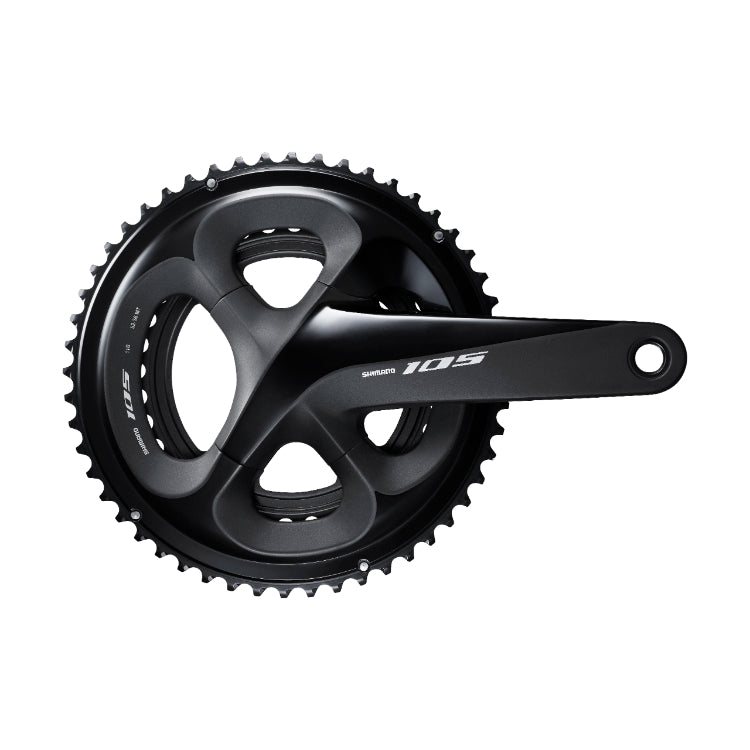

Shimano 105 HOLLOWTECH II Road Crankset FC-R7000

SHIMANO 105 - HOLLOWTECH II - Road Crankset - 2x11-speed

The redesigned SHIMANO 105 FC-R7000 crank balances weight and efficiency without sacrificing stiffness. Its wider gear pitch increases clearance with small gearings on modern 135mm O.L.D. frames. It is offered in 53-39, 52-36, and 50-34T chainring options and 160, 165, 170, 172.5, and 175mm crank arm lengths. Silky Black and Spark Silver color options are available.

• Optimum power transfer
• Balances weight and efficiency without sacrificing stiffness
• Multiple options provide greater choice
• Rider Tuned performance with numerous gear combinations
• Greater frame compatibility
• Wider gear pitch increases chain clearance with small gearings and allows for 410 mm chain stays on 135 mm O.L.D.

TECHNOLOGIES



PRODUCT SPECIFICATIONS

MODEL NO	FC-R7000
SERIES	SHIMANO 105 R7000 Series
Color	Silky black | Spark silver
Average weight	713.4 (50-34T) 742.6 (52-36T) 757.8 (53-39T)
Threaded bottom bracket shell width (mm)_70	✔
Chainring combination	50-34T 52-36T 53-39T
Compatible bottom bracket type_Outboard	✔
Crank fixing screw included	✔
Crank arm length (mm)_160	✔
Crank arm length (mm)_165	✔
Crank arm length (mm)_170	✔
Crank arm length (mm)_172.5	✔
Crank arm length (mm)_175	✔
Spider/Gear arms	4
HOLLOWTECH II	✔
HOLLOWTECH crank arm	✔
Optional chain guard_Without chain/bash guard	✔
Recommended bottom bracket_Press-fit	SM-BB72-41B
Recommended bottom bracket_Threaded (normal)	SM-BBR60
Threaded bottom bracket shell width (mm)_68	✔
Q-factor (mm)	146
Chain line (mm)	43.5
Compatible chain	HG-EV 11-speed, HG-X11
P.C.D. left / right (mm)	110
P.C.D. (mm)	110
Rear speeds	11
